Product description
The NH-U12S is the latest 12cm model of Noctua’s classic U-series single tower CPU coolers, which have received more than 400 awards and recommendations from the international press. The S-version’s 45mm slim shape ensures 100% compatibility with tall RAM modules and at the same time, its fine-tuned design and the class-leading NF-F12 FocusedFlow fan with PWM support for fully automatic speed control allow it to further improve its predecessor’s renowned quiet cooling performance. Topped off with the trusted, pro-grade SecuFirm2 multi-socket mounting system and Noctua’s proven NT-H1 thermal compound, the NH-U12S is a complete premium quality solution that combines outstanding performance, quiet operation and excellent compatibility.
Classic 120mm tower size for excellent overall compatibility
Standing 158mm tall, the NH-U12S is short enough to fit most modern mid- or high-end tower cases. Measuring 125mm wide (including fan and fan clips), the cooler stays clear of the top PCIe slot on standard ATX or Micro-ATX motherboards, ensuring optimum compatibility with multi-GPU setups.
100% RAM compatibility
Thanks to its slim design with only 45mm fin depth, the NH-U12S will not overhang the RAM slots even with two fans installed. This gives the user full access to the memory modules on all current CPU sockets and ensures 100% compatibility with tall heatspreaders or optional memory fans.
NF-F12 120mm Focused Flow fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua's premium quality NF-F12 Focused Flow 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.
NT-H1 thermal compound
Having received more than 100 awards and recommendations from hardware journalists around the world, Noctua's NT-H1 is a proven professional grade TIM solution that provides minimum thermal resistance, excellent ease of use and outstanding reliability.
Measurements
- Height (without fan): 158 mm
- Width (without fan): 125 mm
- Depth (without fan): 45 mm
- Height (with fan): 158 mm
- Width (with fan): 125 mm
- Depth (with fan): 71 mm
- Weight (without fan): 580 g
- Weight (with fan/s): 755 g
Materials
Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating
Cooler Specifications

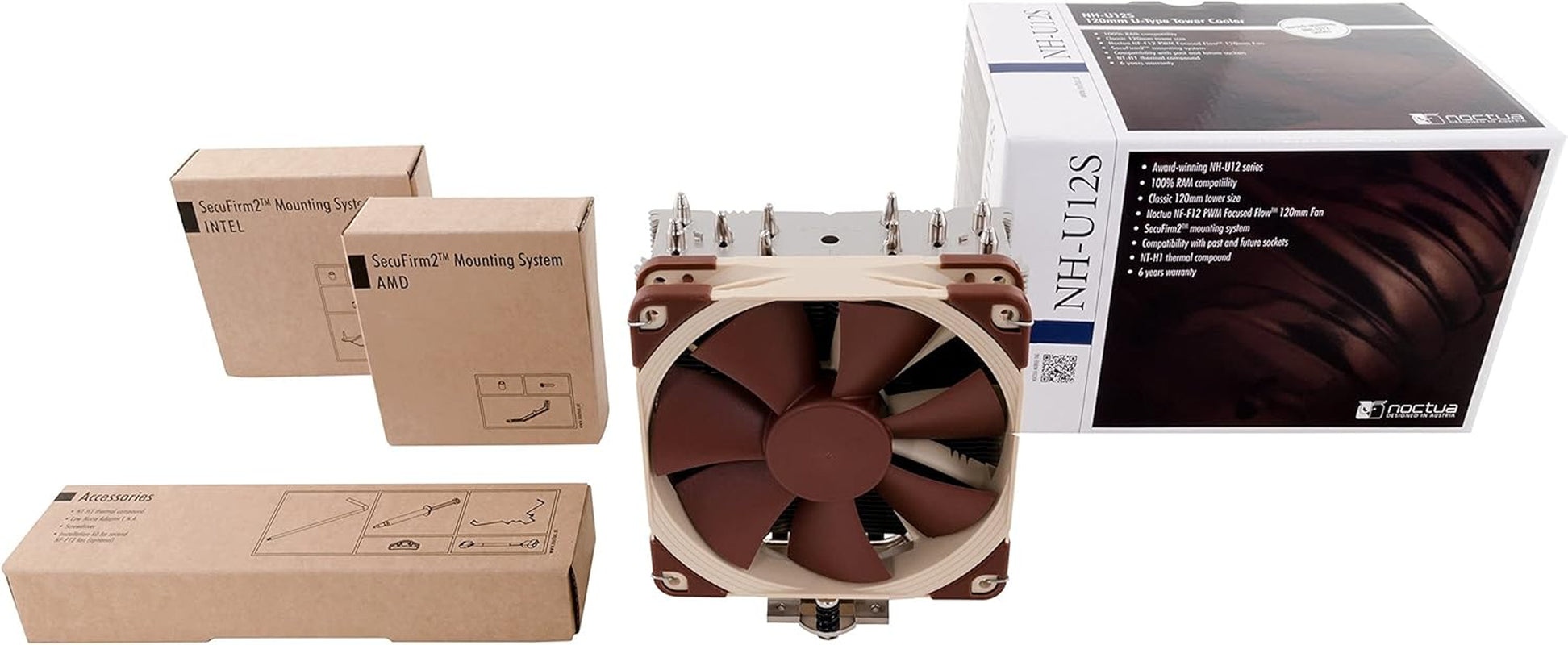

Scope of delivery
- NF-F12 PWM premium fan
- NA-RC6 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 mounting kit
- Anti-vibration pads and fan-clips for second NF-F12
- Noctua metal case-badge
Fan compatibility
120x120x25
Anti-vibration pads and fan-clips for second NF-F12 (optional)
For users who want to achieve even better performance by adding a second, optional NF-F12 fan to create a push/pull setup, the NH-U12S includes fan clips and an extra set of custom-designed anti-vibration pads that allow to off-set the rear fan by 5mm to improve acoustics in dual-fan mode.
| Customer Reviews | 4.8 out of 5 stars 5,255 | 4.5 out of 5 stars 237 | 4.9 out of 5 stars 13 | 4.8 out of 5 stars 4,420 | — | — |
|---|---|---|---|---|---|---|
| Price | $84.95$84.95 | $119.99$119.99 | $149.95$149.95 | — no data | — no data | — no data |
| LGA1851, LGA1700 | ✓ | X | X | ✓ | ✓ | ✓ |
| LGA1200, LGA115x (LGA1150, LGA1151, LGA1155, LGA1156) | ✓ | X | X | ✓ | ✓ | ✓ |
| LGA20xx Square ILM | with NM-i20xx | X | X | with NM-i20xx | with NM-i20xx | with NM-i20xx |
| LGA20xx Narrow ILM | X | X | X | X | X | X |
| LGA4189 | X | with NM-i4189 | with NM-i4189 | X | X | X |
| LGA4677 | X | with NM-i4677 | ✓ | X | X | X |
| AM5 | ✓ | X | X | ✓ | ✓ | ✓ |
| AM4 | ✓ | X | X | ✓ | ✓ | ✓ |
| TR4, SP3, sTRX4, sWRX8 | X | ✓ | X | X | X | X |
| sTR5, SP6 | X | with NM-TR5-SP6 | with NM-TR5-SP6 | X | X | X |
- Classic 120mm slim-tower design combines outstanding cooling performance with excellent case-, RAM- and PCIe-compatibility
- Does not overhang the RAM or PCIe slots on most current motherboards
- Highly optimised NF-F12 120mm Focused Flow fan with PWM support and Low-Noise Adaptor for automatic speed control and ultra-quiet operation
- Includes high-end NT-H1 thermal paste and SecuFirm2 mounting system for easy installation on Intel LGA1851, LGA1700, LGA1200, LGA115x and AMD AM5 & AM4
- Renowned Noctua quality backed up by 6-year manufacturer’s warranty, deluxe choice for Intel Core & Core Ultra (e.g. 285K, 265K, 245K) and AMD Ryzen (e.g. 9950X, 9900X, 9700X, 9600X)
